Descripción

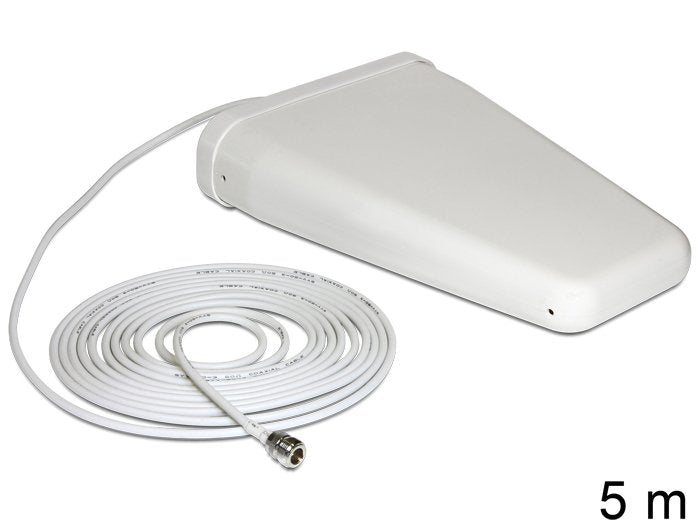

delock 88808 LTE Band 20/1/3/7 Antenna N Jack 8 ~ 9 dBi 5.0 m RG-58 directional white outdoor
Descripción

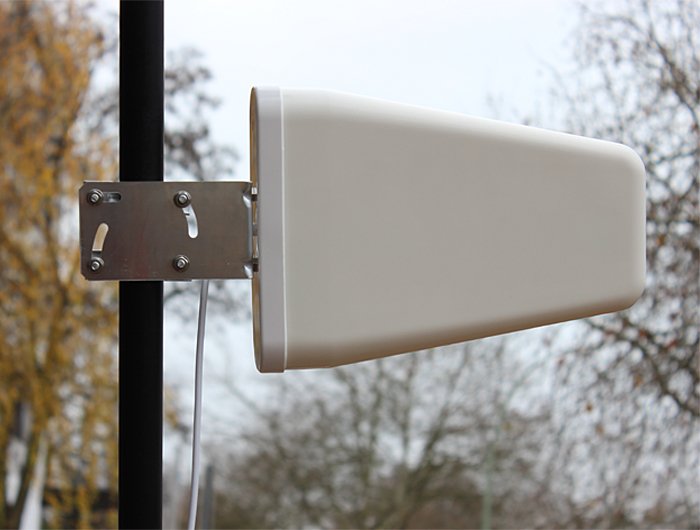

This Delock LTE antenna can be installed outdoors and indoors and take advantage of all four bands for LTE. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave
Detalles tecnicos
• Connector: N jack
• LTE Band: 1 - 4, 7, 9, 10, 15, 16, 20, 23, 25, 27, 30, 33 - 41
• Frequency range: 790 - 870 MHz, 1710 - 2690 Mhz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 8 - 9 dBi
• Polarisation vertical
• Horizontal beam form: 90°
• Vertical beam form: 60°
• Impedance: 50 Ohm • VSWR: 2,0
• Operation temperature: -40°C ~ 60°C
• Housing: ABS UV resitant
• Protection class: IP55
• Colour: white
• Dimension: 295 x 205 x 65 mm
• Cable category: coaxial
• Cable type: RG-58
• Cable colour: white
• Cable attenuation: 0.50 dB per meter @ 800 MHz
• Cable diameter: ca. 5 mm
• Cable length incl. connector: 5 m
Requisitos del sistema
- Device with free N plug
Contenido del paquete
- LTE antenna

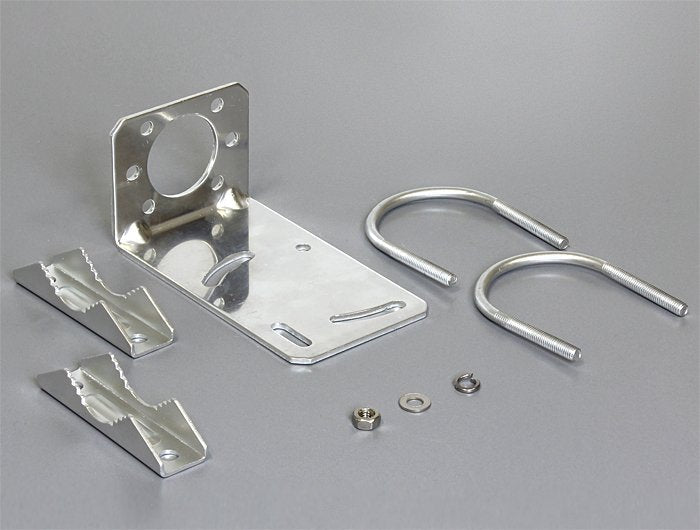

- Pole mounting kit
Paquete
- Box
