SKU
P/N:
DELOC-12620
EAN:4043619126200
Otros usuarios también han visto
Descripción

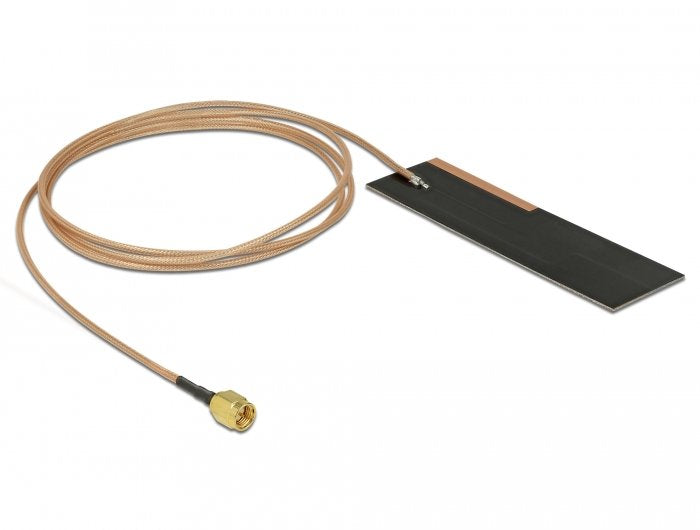

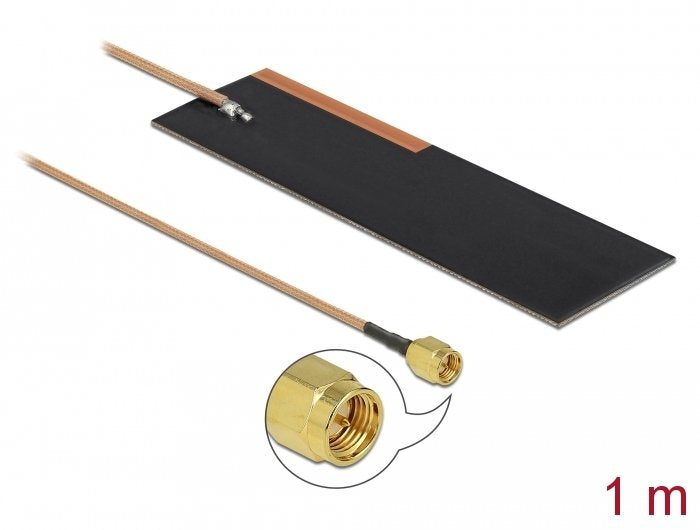

delock 12620 LPWAN Antenna SMA plug 1 - 2 dBi RG-178 1 m PCB internal self adhesive
Descripción
This LPWAN antenna by Delock allows the usage of the NB-IoT bands indoors.
LPWAN ( L ow P ower W ide A rea N etwork) are radio networks that cover large distances . They are characterized by a high reception sensitivity and by a low energy consumption.
Detalles tecnicos
- Connector: 1 x SMA plug
- Frequency range:
703 MHz - 824 MHz
832 MHz - 960 MHz - ZigBee, Z-Wave, GSM, LTE, NB-IoT, LoRa, ISM
- Antenna gain: 1 - 2 dBi
- VSWR: 3.5
- Impedance: 50 Ohm
- Mounting type: self adhesive
- Operating temperature: -10 °C ~ 55 °C
- Housing material: PCB
- Colour: black
- Cable type: coaxial
- Cable type: RG-178
- Cable colour: black
- Cable diameter: ca. 1.8 mm
- Cable attenuation: 2.9 dB @ 2.4 GHz per meter
- Smallest bending radius: 7.5 mm

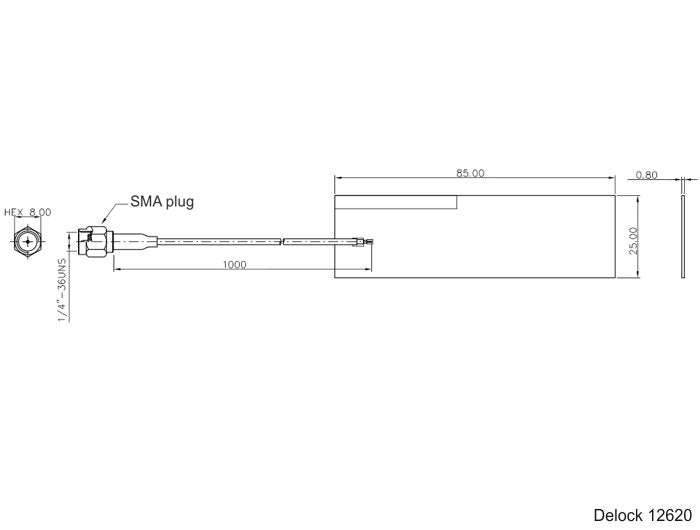

- Dimensions (LxW): ca. 85.0 x 25.0 mm
- Cable length incl. connector: ca. 1 m
Requisitos del sistema
- Device with one free SMA port
Contenido del paquete
- Antenna
Paquete
- Bolsa de plástico con cremallera
