SKU
P/N:
DK-1844-020
EAN:4016032456711
Otros usuarios también han visto
Descripción

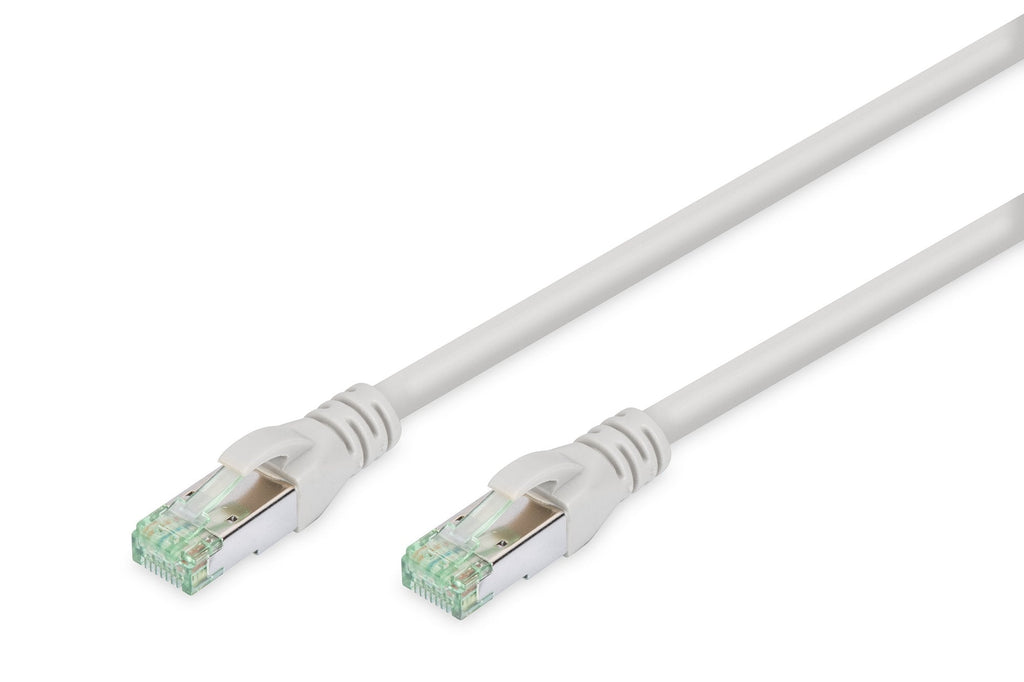

Digitus DK-1844-020 cable de red Gris 2 m Cat8.1 S/FTP (S-STP)
The high-end network solution according to the CAT 8.1 standard
- Reach a bandwidth of up to 2000 MHz
- With LSZH (low smoke zero halogen) outer sheath for best fire behavior and low smoke emission

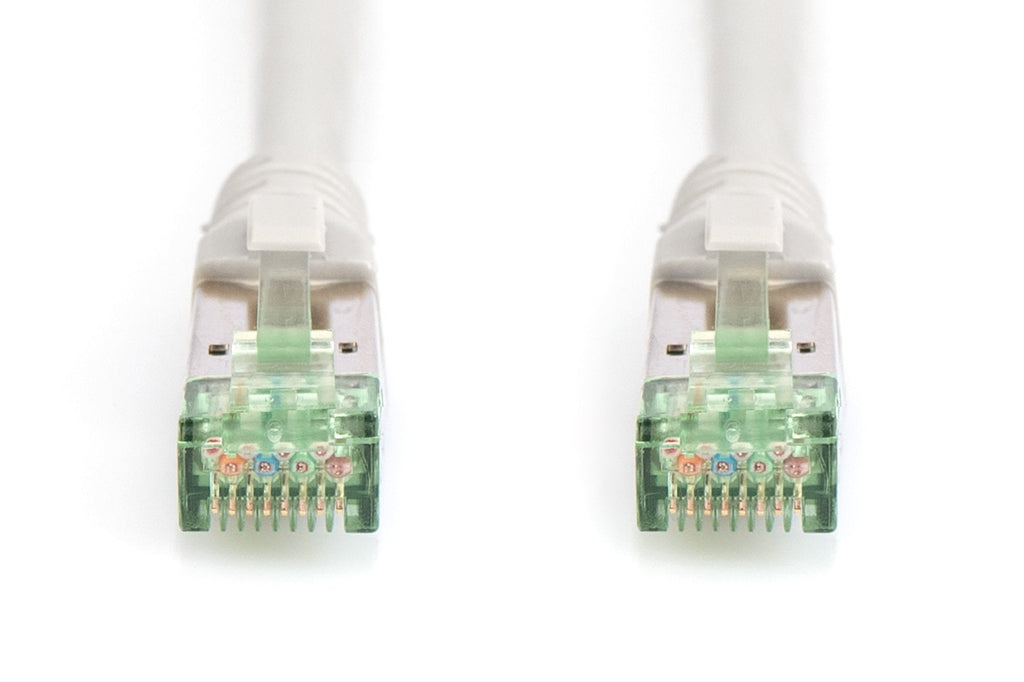

- Transparent green colored connector with metal shielding for easy identification of Category 8.1 (2000 MHz)
- Inner conductor: Copper (Cu)
- PoE++ compatible
The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standards. They guarantee that the cable installation complies with the ISO & EN channel specification and provide excellent performance in the DIGITUS® CAT 8.1 cabling. The performance was tested up to 2000 MHz, including performance characteristics such as near-end crosstalk (“NEXT”). The DIGITUS® patch cables were specifically designed to fully meet all requirements in various application areas. Each cable is equipped with a molded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection, which prevents kinking of the cables and breaking-off of the locking lever from the connector. Category 8.1 is simply identified by the green colored connectors.
- Reach a bandwidth of up to 2000 MHz
- With LSZH (low smoke zero halogen) outer sheath for best fire behavior and low smoke emission
- Transparent green colored connector with metal shielding for easy identification of Category 8.1 (2000 MHz)
- Inner conductor: Copper (Cu)
- PoE++ compatible
The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standards. They guarantee that the cable installation complies with the ISO & EN channel specification and provide excellent performance in the DIGITUS® CAT 8.1 cabling. The performance was tested up to 2000 MHz, including performance characteristics such as near-end crosstalk (“NEXT”). The DIGITUS® patch cables were specifically designed to fully meet all requirements in various application areas. Each cable is equipped with a molded anti-kink sleeve with strain relief. In addition, the sleeve has a locking lever protection, which prevents kinking of the cables and breaking-off of the locking lever from the connector. Category 8.1 is simply identified by the green colored connectors.
Puntos clave del producto
- 2 x RJ45 connectors (8P8C)
- Covers with kink protection, strain relief and locking lever protection
- Length designation on the covers
- Inner conductor: Copper (Cu)
- Halogen free: yes
- Pin assignment: 1:1
- Category: 8.1
- AWG cross-section: 24
- Anti-kink sleeve: molded
- Connector 1 type: RJ45 8(8)
- Connector 2 type: RJ45 8(8)
- Cable construction: 4 x 2
- Flame retardant version: yes
- Anti-kink sleeve color: Grey
- Locking lever protection: yes
- NVP value: 76
- Oil resistant to EN 60811-404: no
- Sheath color: Grey
- Length: 2 m
Características
- Color del producto: Gris
- Longitud de cable: 2 m
- Cable estándar: Cat8.1
- Blindaje de cable: S/FTP (S-STP)
- Conector 1: RJ-45
- Conector 2: RJ-45
- Género del conector 1: Macho
- Género del conector 2: Macho
- Blindaje del conector: Si
- Material de chaqueta: Libre de halógenos (LSZH)
- Material del conductor: Cobre
- AWG calibre del cable: 24/7
- País de origen: China
Sostenibilidad
- No contiene: Halógeno
Contenido del embalaje
- Cantidad por paquete: 1 pieza(s)
Empaquetado
- Ancho del paquete: 25 mm
- Profundidad del paquete: 225 mm
- Peso del paquete: 216 g
- Volumen del paquete: 1856,25 cm³
