Descripción

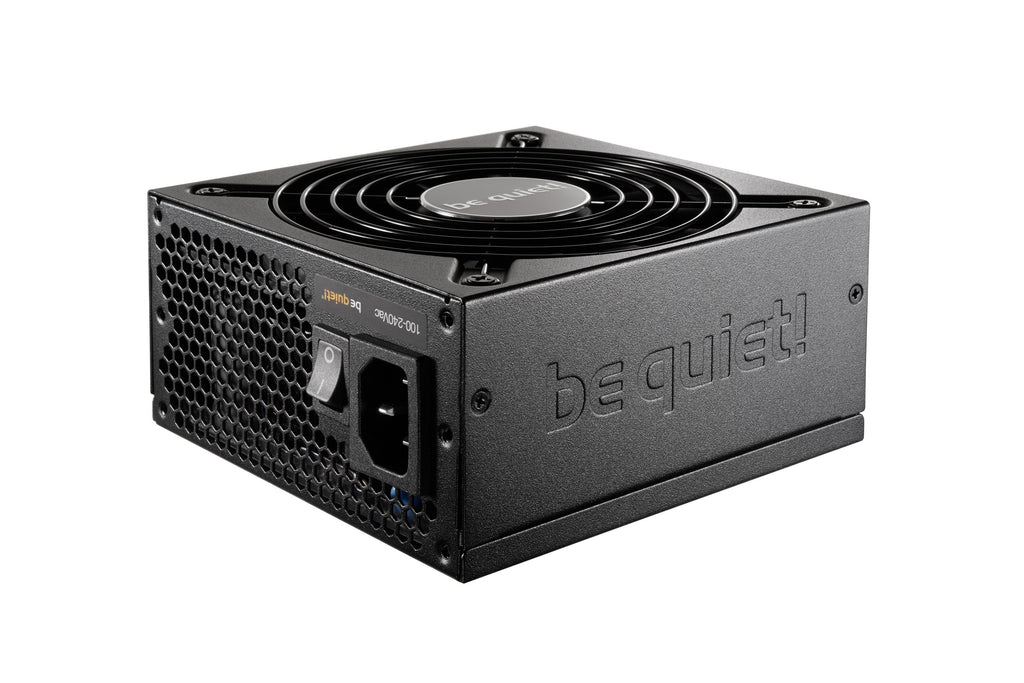

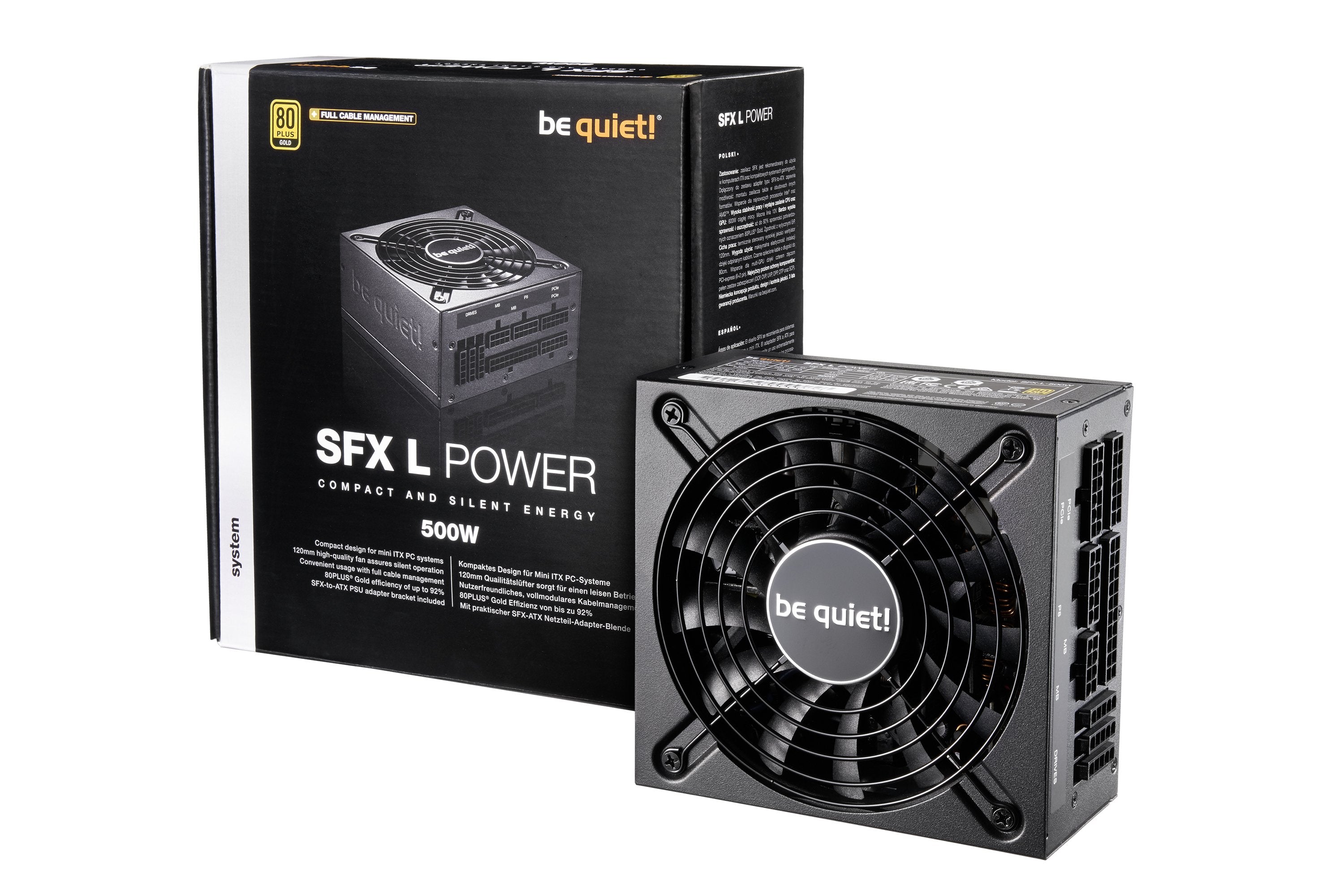

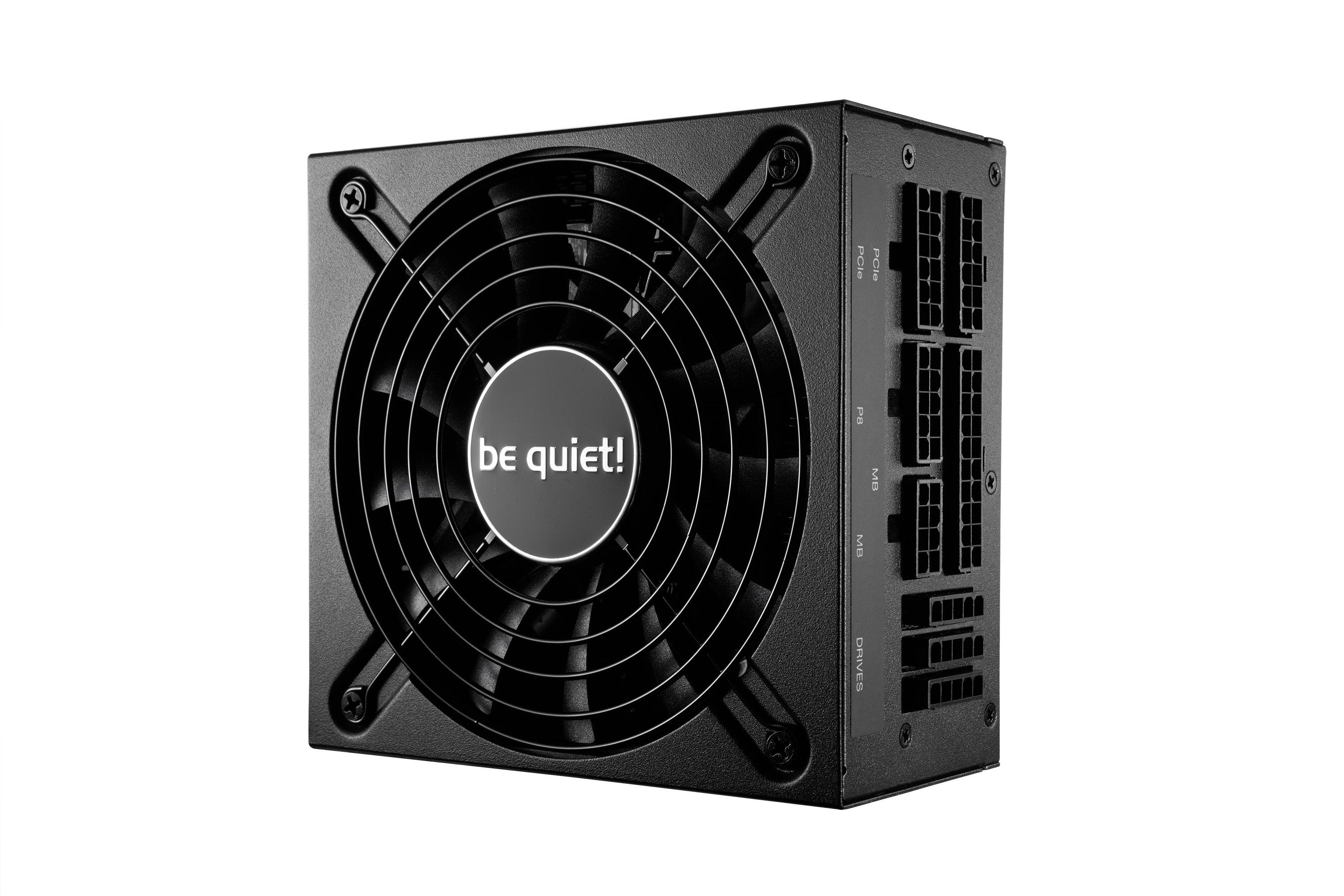

be quiet! SFX L Power unidad de fuente de alimentación 500 W 20+4 pin ATX Negro
be quiet! SFX L Power 500W is especially recommended for mini ITX PCs and compact gaming systems. For compact PC systems that perform beyond the ordinary, with an ideal combination of features, power, efficiency and reliability, choose SFX L Power 500W.
POWERFUL, RELIABLE AND STABLE
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. Four PCIe connectors to support multi-GPU setups.
QUIET OPERATION FOR COMPACT SYSTEMS
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.
80 PLUS® GOLD CERTIFICATION
SFX L Power 500W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.

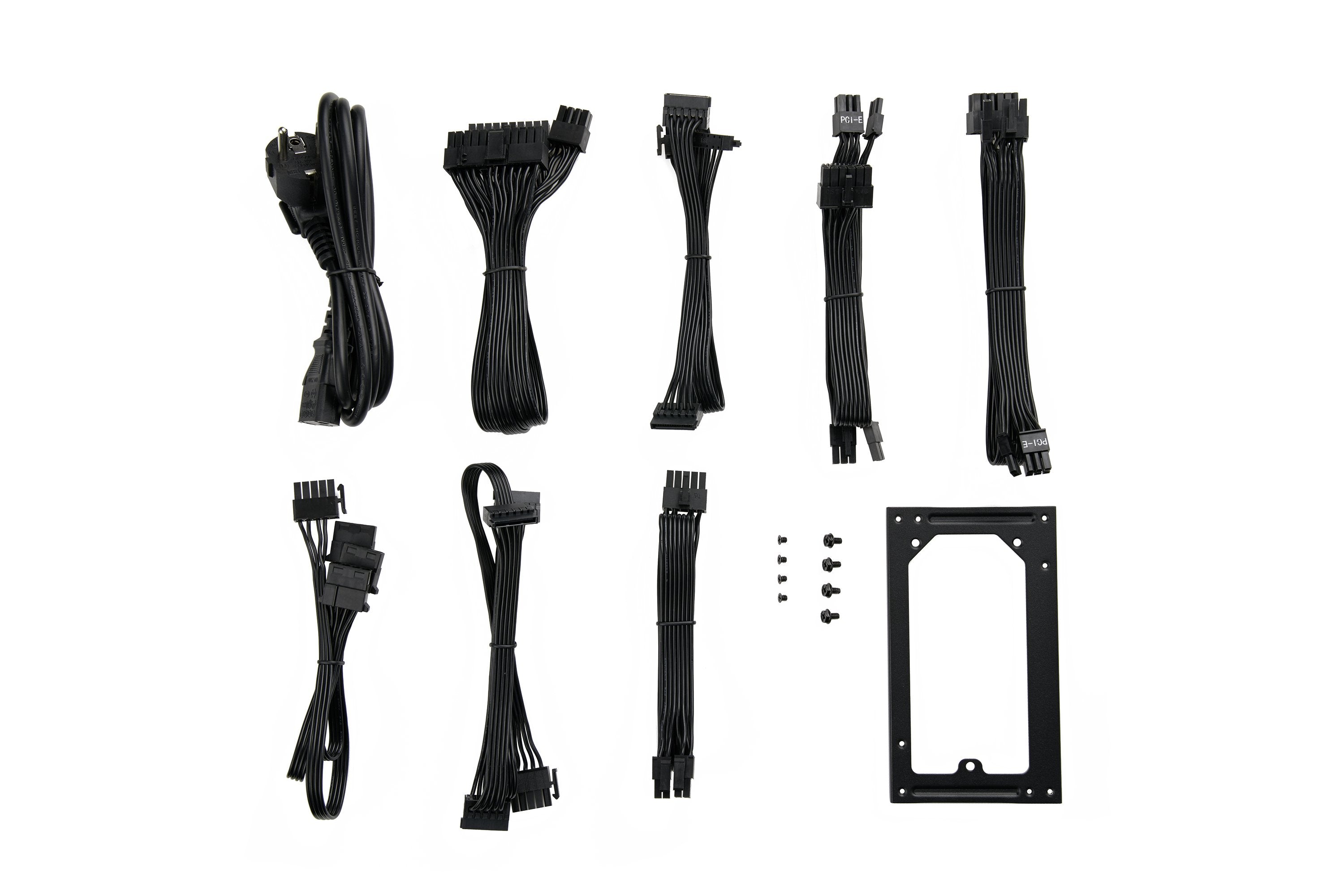

MODULAR AND FLAT CABLES
Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.
SUPER VERSATILE INSTALLATION
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
POWERFUL, RELIABLE AND STABLE
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. Four PCIe connectors to support multi-GPU setups.
QUIET OPERATION FOR COMPACT SYSTEMS
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.
80 PLUS® GOLD CERTIFICATION
SFX L Power 500W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.
MODULAR AND FLAT CABLES
Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.
SUPER VERSATILE INSTALLATION
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
MODULAR AND FLAT CABLES
Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.
SUPER VERSATILE INSTALLATION
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
Puntos clave del producto
- 500 W 100 - 240 V 50 - 60 Hz
- Alimentador de energía para tarjeta madre: 20+4 pin ATX
- PC SFX 80 PLUS Gold
- 12 cm
- Negro
Control de energía
- Potencia total: 500 W
- Máxima energía: 550 W
- Voltaje de entrada AC: 100 - 240 V
- Frecuencia de entrada AC: 50 - 60 Hz
- Corriente de entrada: 10 A
- Factor de poder: 0,99
- Corrección del factor de potencia tipo (PFC): Activo
- Potencia combinada (3,3 V): 105 W
- Potencia combinada (+12 V): 500 W
- Potencia combinada (+5 V): 105 W
- Potencia combinada (-12V): 3,6 W
- Potencia combinada (+5 VSB): 15 W
- Corriente máxima de salida (+3.3V): 20 A
- Corriente máxima de salida (+12V): 41,7 A
- Corriente máxima de salida (+5V): 20 A
- Corriente máxima de salida (-12V): 0,3 A
- Corriente máxima de salida (+5Vsb): 3 A
- Tiempo de espera: 16,7 ms
- Eficiencia: 92%
- Funciones de protección de poder: Sobreintensidad, Sobretensión, Sobrevoltaje, Sobrecalentamiento, Cortocircuito, Bajo voltaje
Puertos e Interfaces
- Alimentador de energía para tarjeta madre: 20+4 pin ATX
- Longitud del cable de alimentación de la placa base: 30 cm
- Número de conectores de energía SATA: 6
- Número de PATA conectores de alimentación: 3
- Conectores de poder PCI Express (6 + 2 pin): 4
- Longitud del cable de alimentación PCI Express: 40 cm
- CPU conector de alimentación (4 +4 pines): Si
- Longitud del cable de alimentación CPU: 40 cm
- Tipo de cableado: Totalmente modular
Desempeño
- Certificación 80 PLUS: 80 PLUS Gold
- Formas de factor de tarjeta madre soportadas: Mini-ITX
- Utilizar con: PC
- Factor de forma de fuente de alimentación (PSU): SFX
- Versión ATX: 2.4
- Modo silencioso: Si
- Tecnología de rodamientos: Funda
Diseño
- Color del producto: Negro
- Diámetro de ventilador: 12 cm
- Número de ventiladores: 1 Ventilador(es)
- Interruptor de encendido/apagado integrado: Si
Aprobaciones reguladoras
- Certificados de conformidad: RoHS
- Certificación: CE, CB, TÜV, FCC, cTUVus, RCM
Peso y dimensiones
- Ancho: 125 mm
- Profundidad: 130 mm
- Altura: 64 mm
- Peso: 1,14 kg
Empaquetado
- Manual de usuario: Si
- Ancho del paquete: 205 mm
- Profundidad del paquete: 220 mm
- Altura del paquete: 80 mm
- Peso del paquete: 2,02 kg
- Tipo de embalaje: Caja
Detalles técnicos
- Certificados de sostenibilidad: ENERGY STAR
Otras características
- Tornillos incluídos: Si
- Incluye bridas: Si
- Nivel de ruido (modo silencioso, <30%): 9,9 dB
- Nivel de ruido (modo silencioso, el 50%): 14 dB
- Nivel de ruido (modo de carga completa, 100%): 28,5 dB
